GENERAL INFORMATIONS

Extrapanel shuttering panels are high-quality, 3-ply wooden panels, made of spruce wood acquired from sustainable forests. The panels are fully coated with a highly resistant melamine resin, giving them excellent protection. They are mostly used for paneling concrete constructions, but can also be used for other purposes due to their exceptional functionality. They are distinguished for their superior quality, durability and multiple use.

CHARACTERISTICS

  • Product: 3-ply concrete formwork panel coated with melamine resin that allows a resistant and smooth surface
  • Wood species: Spruce
  • Wood moisture: 12 % +/- 2 % at delivery
  • Thickness: 21 mm, 27 mm, 30mm
  • Weight: 21 mm = 10 kg/m2; 27 mm = 12,3 kg/m2; 30 mm = 13,8 kg/m2
  • Surface protection: Highly resistant melamine coating, extremely smooth surface
  • Standard packaging: 21 mm / 50 pcs package, 27 mm / 40 pcs package, 30 mm / 35 pcs package The packages are ready to be immediately used at the construction site. The package is placed on supporting wood, protecting the panels and provides simple use with forklift
Thickness mm27, 3027, optional 21, optional
Width mm 500 200, 250, 300, 350, 400, 450 500
Length mm 1000, 1500, 2000, 2500, 3000 30001000, 1500, 2000, 2500, (3000)

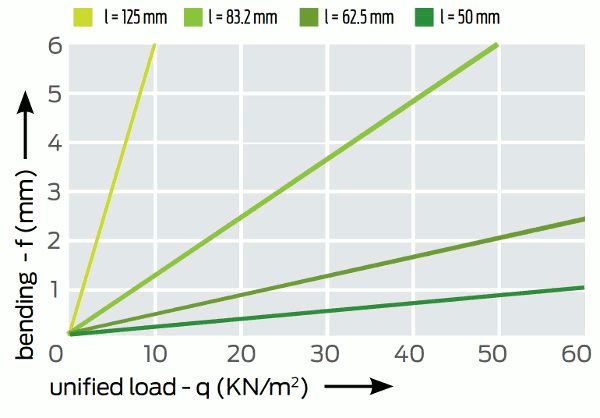

The diagram shows how the panel reacts when loaded, considering the space intervals in between the supporting elements. Therefore q stands for uniform load (in KN/m2 units), l stands for the space interval in between the supporting elements and f (bending) is stated in mm.
